Process behind Bier four vier

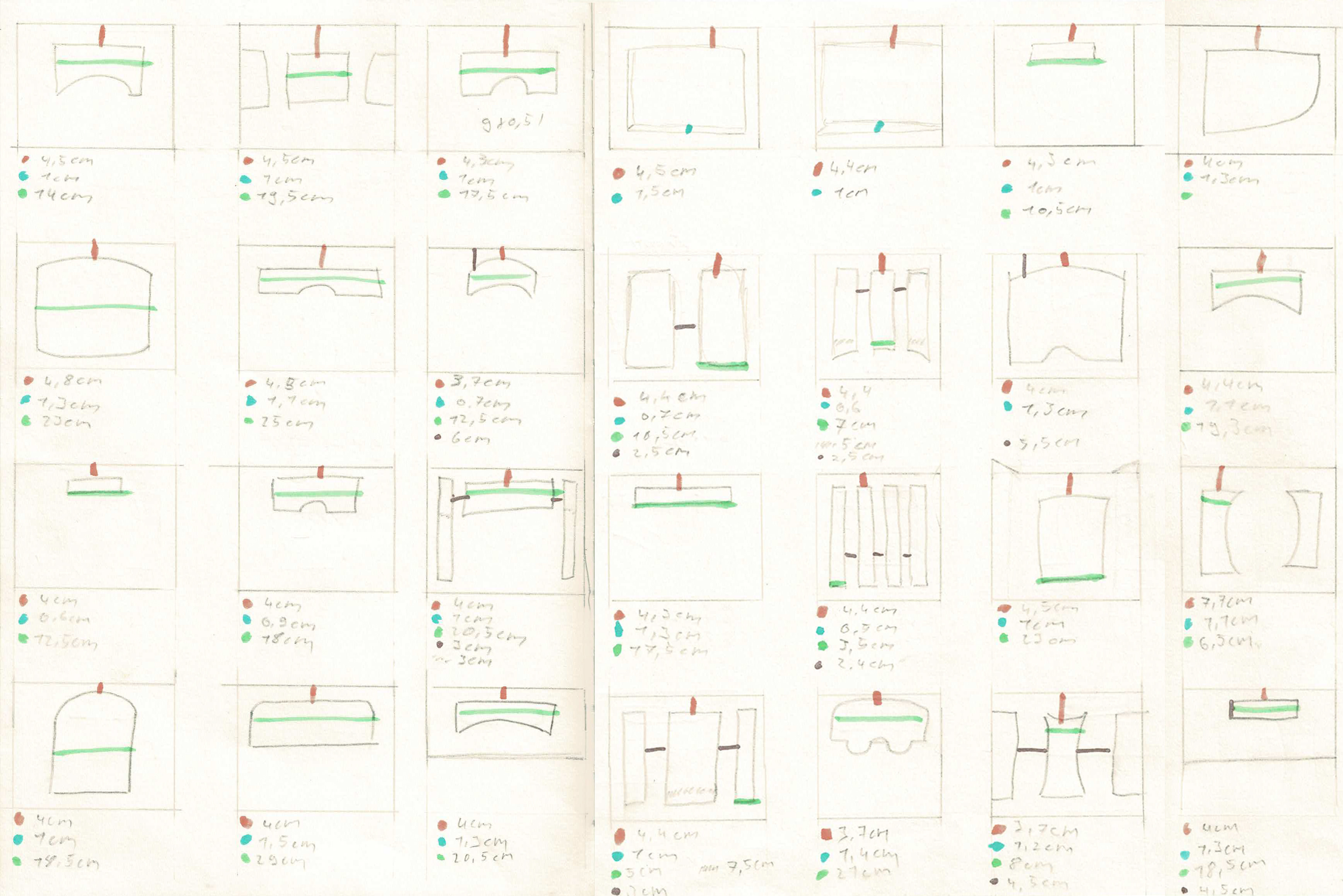

To create a design that would fit the majority of bike racks and especially all the different crates that can be found, extensive research had to be conducted on the various products that have an impact on the use of the product itself.

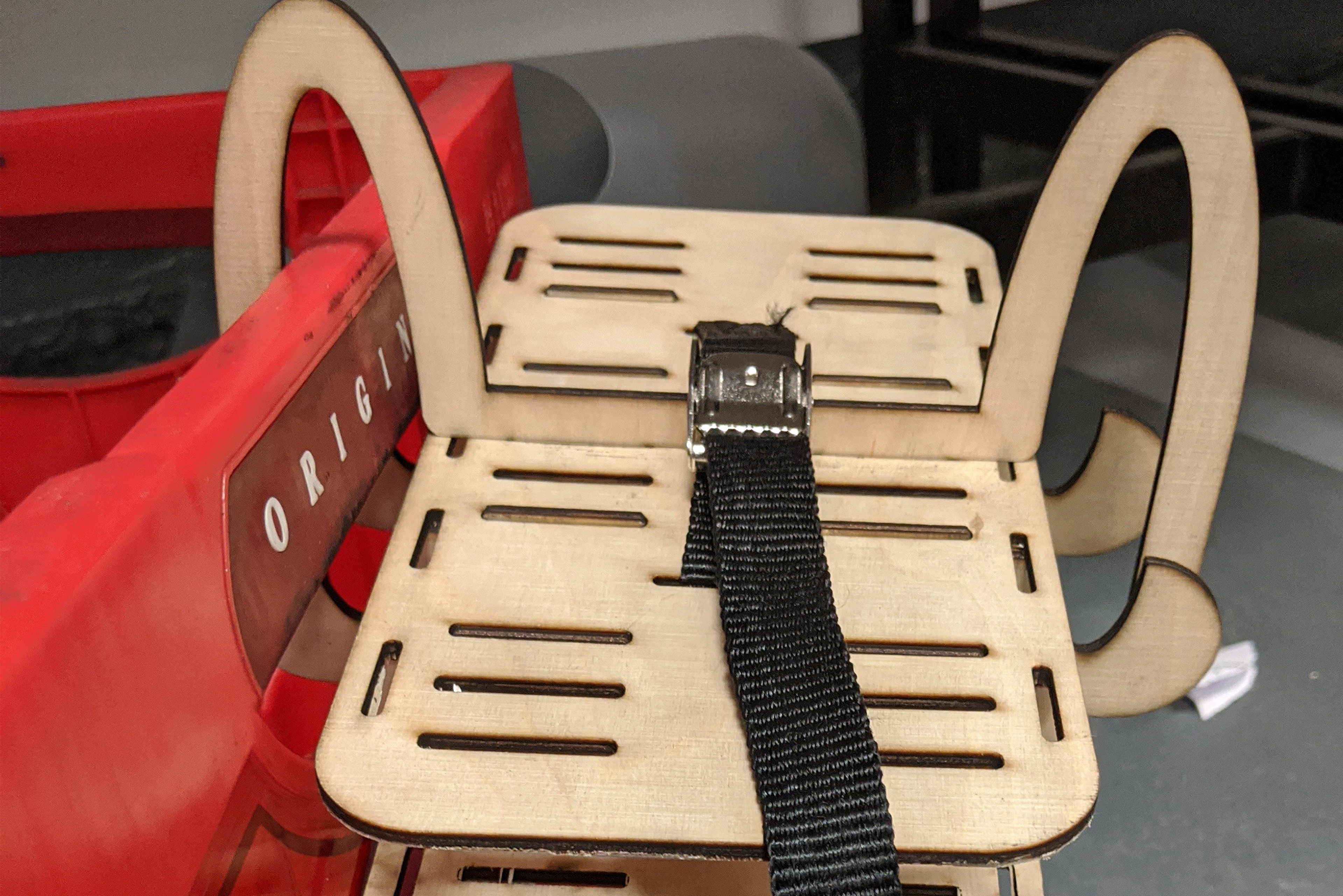

Through the research a solution to fit all different sizes was designed within a short time frame. The most elaborate part was to make the product stable enough. Reinforcement pieces on the unused areas together with side and middle fixations helped to reinforce the stability between the two plates and its fixation to the bicycle rack. Lastly the “warthog teeth” on top of the crate handles protects the crates against slipping of their holder when you drive over uneven roads.

Ideation 1

Ideation 2

Ideation 3

Ideation 4

For the finale outcome follow the button below.
